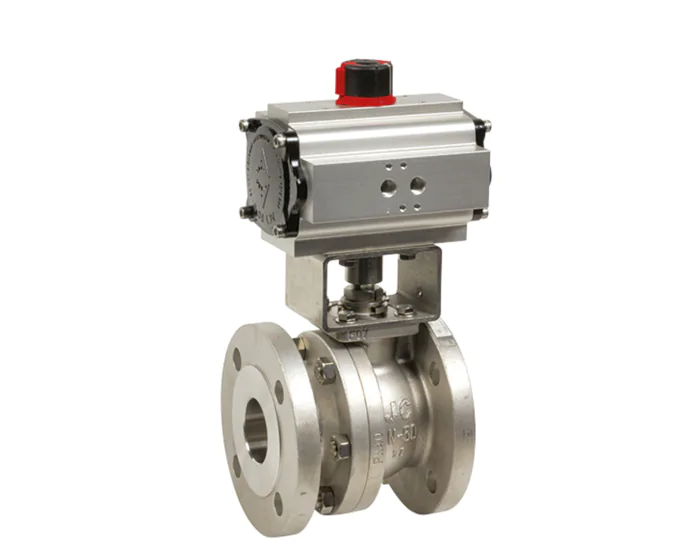

JC valves stainless steel ball valve 540IICG + ADA/ASR pneumatic actuator
€1,256.41
(excl. btw)
The 540IICG series JC VALVES ball valve has a CF8M stainless steel body and ball, and PTFE + 20% graphite seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150.
Specification
Value
Option certificate 3.1
Yes
Maximum delta P (bar)
10
Operating angle (°)
90
Shaft/stem matérial
Stainless steel 316
Adjustable limit screws
Yes
ATEX compatible
Yes
DN
DN65 - 2''1/2
Face to Face (mm)
170.0
Body material
Stainless steel CF8M (1.4408)
ATEX protection mode
Ex c
Number of ways
2
Bore
Full
Packing gland
Graphite
PS (bar)
16
Connections
Flanged PN16
Seats
PTFE-Graphite
Ball material
Stainless steel 316
Surface temperature
TX
Pneumatic actuator type
Double acting
Ball valve design
2-piece body
CE
Risk category I
Range
JC Valves
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
2542
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Double acting Flanged PN16
516IICG065015103
S1002528
€1,256.41
(excl. btw)
add to cart
2543
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN65 - 2''1/2 Spring return Flanged PN16
516IICG065016105
S1002529
€1,534.23
(excl. btw)
add to cart
2544
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' Spring return Flanged PN16
516IICG080016106
S1002530
€1,973.40
(excl. btw)
add to cart
2545
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN125 - 5'' Spring return Flanged PN16
516IICG125016107
S1002531
€4,432.77
(excl. btw)
add to cart
2546
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' Spring return Flanged PN16
516IICG150016108
S1002532
€8,865.53
(excl. btw)
add to cart
2547
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Double acting Flanged PN40
540IICG015015100
S1002533
€566.16
(excl. btw)
add to cart
2548
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' Spring return Flanged PN16/40
540IICG015016101
S1002534
€625.87
(excl. btw)
add to cart
2549
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' Double acting Flanged PN40
540IICG020015100
S1002535
€607.21
(excl. btw)
add to cart
2550
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Double acting Flanged PN40
540IICG025015101
S1002536
€651.11
(excl. btw)
add to cart
2551
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' Spring return Flanged PN16/40
540IICG025016102
S1002537
€742.56
(excl. btw)
add to cart
2552
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Double acting Flanged PN40
540IICG032015101
S1002538
€832.51
(excl. btw)
add to cart
2553
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN32 - 1''1/4 Spring return Flanged PN40
540IICG032016102
S1002539
€924.17
(excl. btw)
add to cart
2554
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 Spring return Flanged PN40
540IICG040016103
S1002540
€934.67
(excl. btw)
add to cart
2555
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Double acting Flanged PN40
540IICG050015102
S1002541
€963.31
(excl. btw)
add to cart
2556
Flanged PN16 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' Spring return Flanged PN16/40
540IICG050016104
S1002542
€1,145.66
(excl. btw)
add to cart
